Acoustic Wall Panels

Reduce echoes and reverberation to lower the overall indoor noise level.

-It can absorb sound while blocking heat transfer between indoors and outdoors, reducing energy consumption for building heating and cooling

-Easy to install and maintain

Acoustic Wall Panels Manufacturer in China

Acoustic Wall Panels are plate-shaped materials that absorb incident sound energy, converting it into heat energy, resulting in reflected sound energy that is much smaller than the incident sound energy. Their sound absorption mechanism primarily relies on numerous tiny interconnected pores within the material, allowing sound waves to penetrate deep into the material and interact with it through friction, thereby converting sound energy into heat energy.

Our acoustic wall panels are made of materials such as rock wool or centrifugal glass wool, offering fire resistance, mildew resistance, and corrosion resistance. They protect walls from impact damage, reduce indoor noise by 10-30 decibels, and promote more even sound distribution, improving auditory comfort in noisy environments. SamZoon Acoustic wall panels can be installed using the joist method, direct pasting, or snap-on base, depending on installation requirements. Furthermore, we offer wall panels in various sizes, colors, and materials.

Different Types of Acoustic Wall Panels

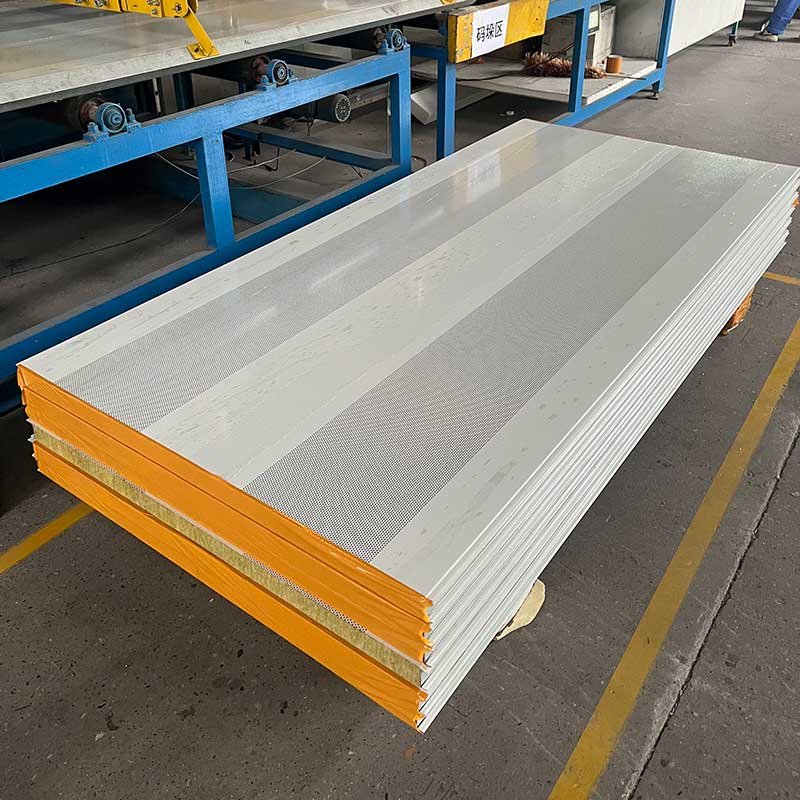

Double-row perforated acoustic wall panels

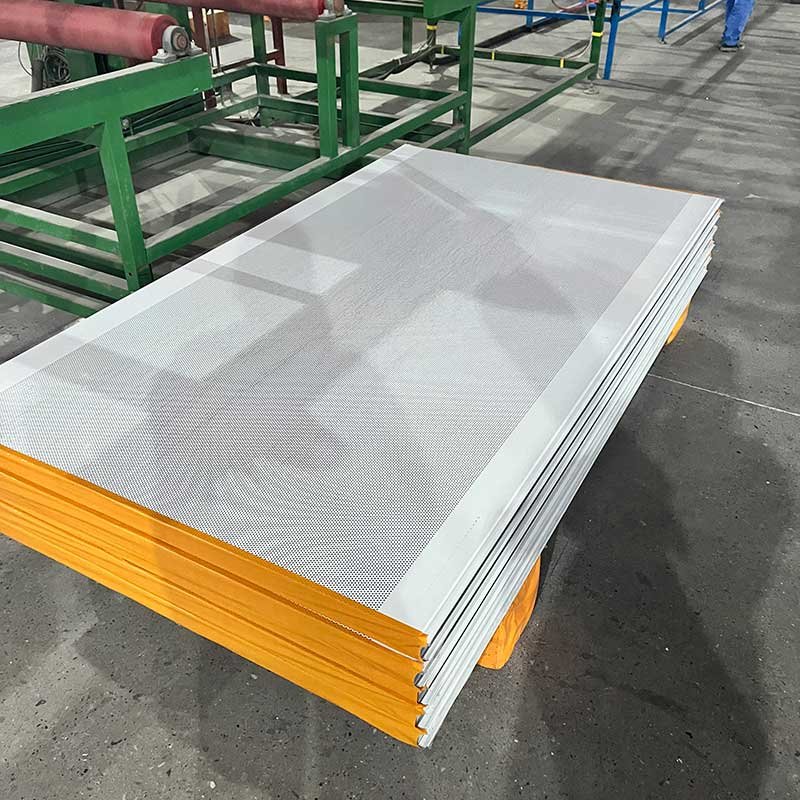

Double-sided perforated acoustic wall panels

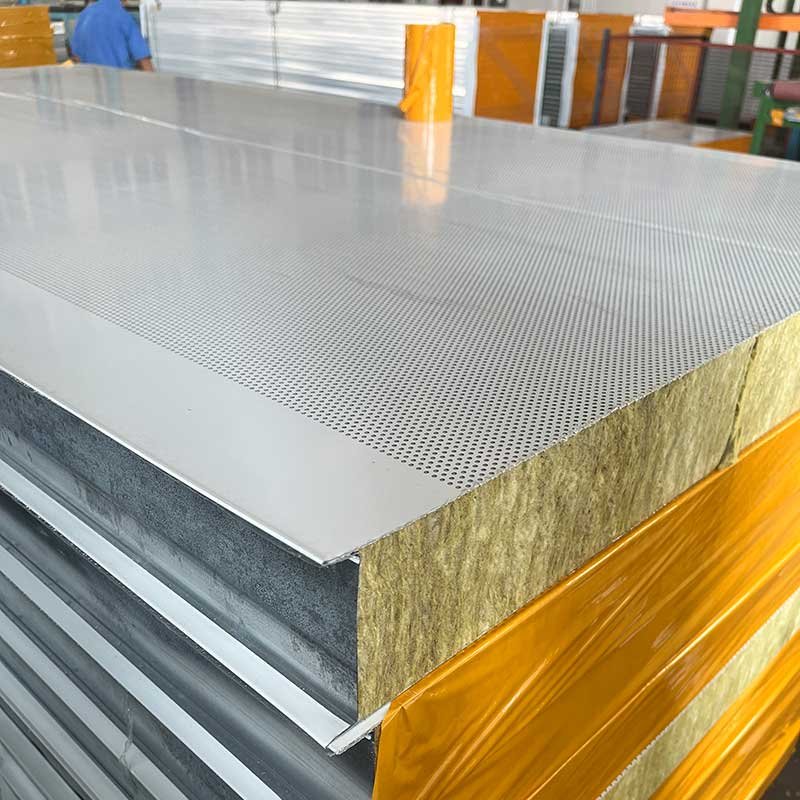

50-1150 Fully perforated acoustic wall panels

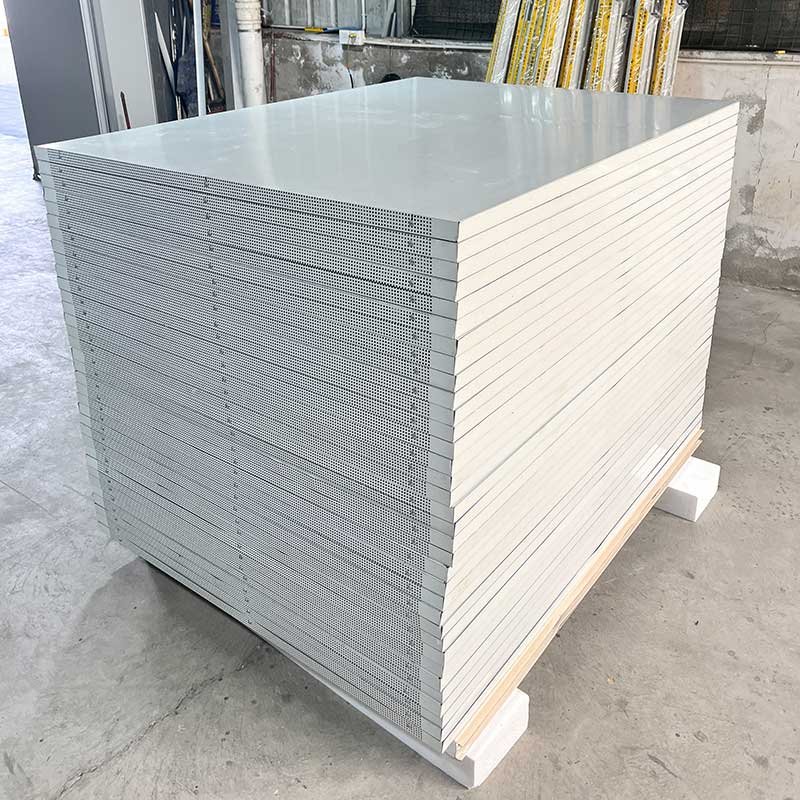

Perforated Handmade acoustic wall panels

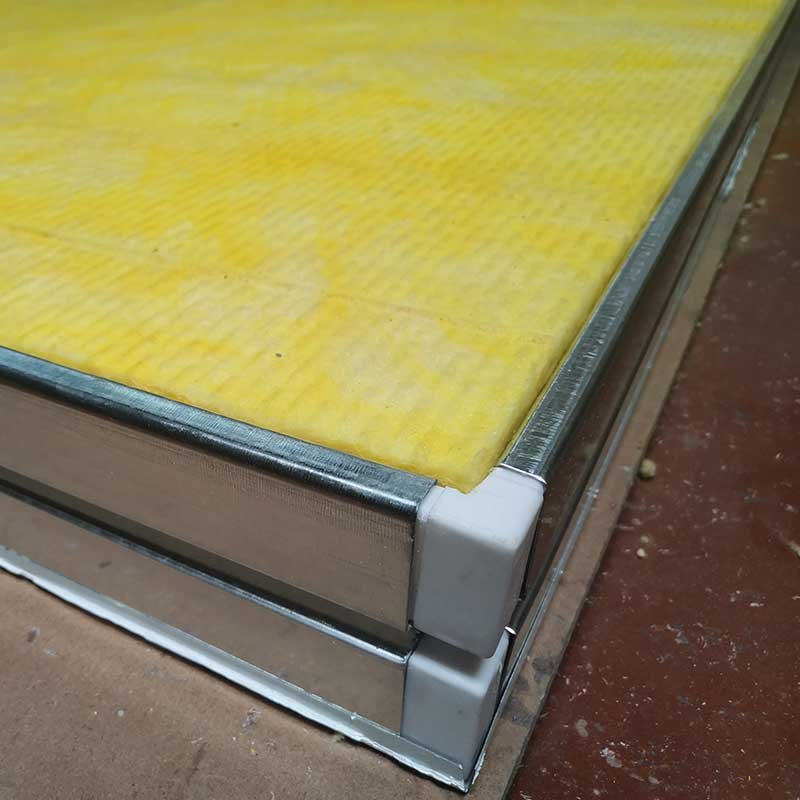

Glass plate + Rock Wool acoustic wall panels

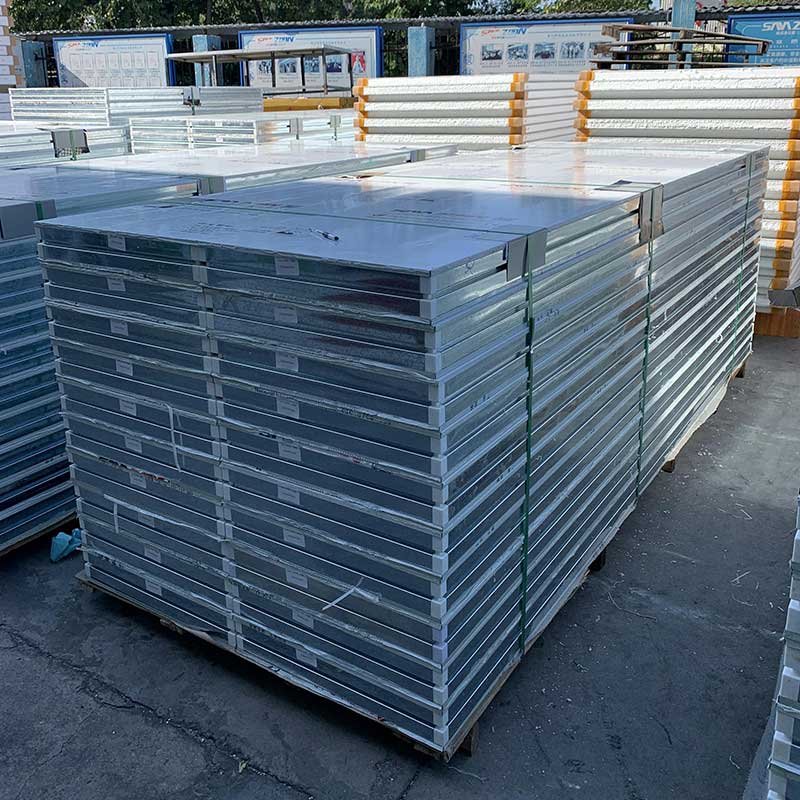

Glass wool + thin film acoustic wall panels

Using Our Acoustic Wall Panels Can Reduce Environmental Noise Interference

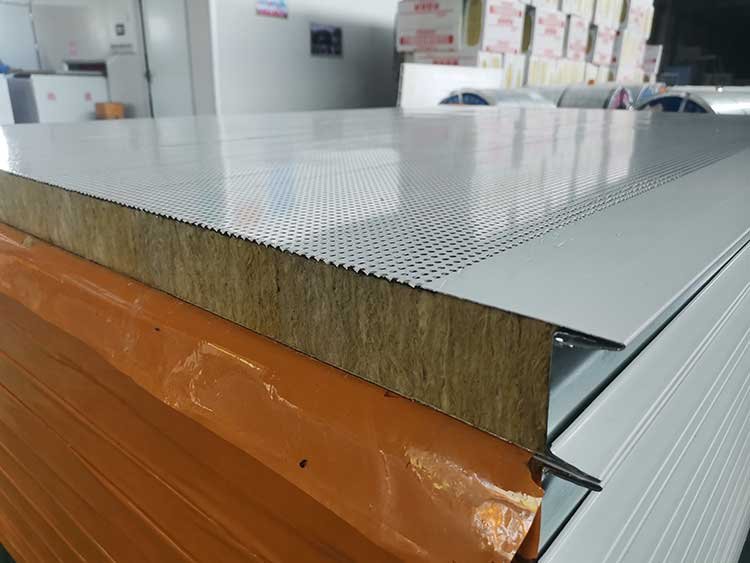

Advantages of Using Acoustic Wall Panels

Sound absorption and noise reduction: Effectively reduces reverberation time, eliminates echoes and standing waves, and improves speech clarity.

Flame retardant and fireproof: It does not melt or drip when exposed to fire and does not produce large amounts of toxic fumes.

Thermal insulation: Fibers or porous structures can block heat transfer, help regulate indoor temperature, and reduce energy consumption

Impact resistance: Materials (such as metal sheets and high-density wood panels) have strong impact resistance and are suitable for areas with high pedestrian traffic or minor collision risks.

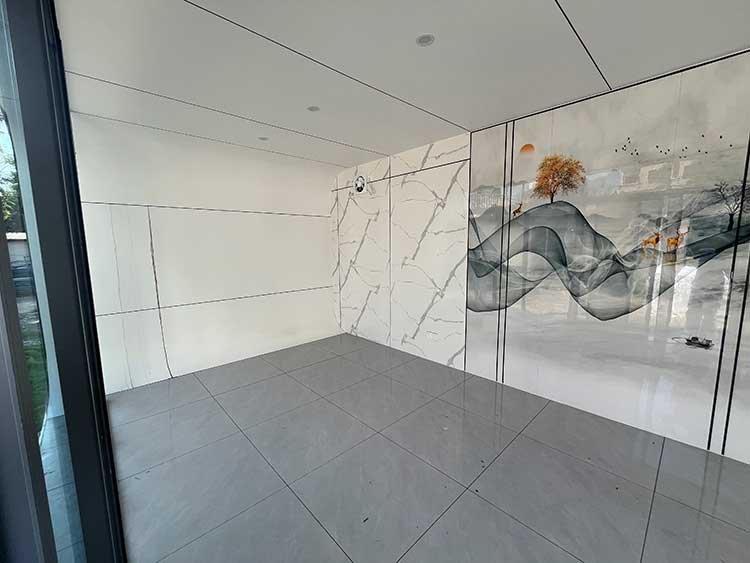

Acoustic Wall Panels Applications

SamZoon acoustic wall panels are widely used across various industries to address acoustic deficiencies in different scenarios, while also meeting decorative and safety requirements. In conference rooms, lecture halls, and open-plan offices, they effectively reduce reverberation and improve speech clarity, creating a focused and quiet environment for communication and work. In hospital clinics, wards, and public areas such as high-speed rail stations and airport waiting halls, these acoustic panels, with their flame-retardant, moisture-proof, antibacterial, and easy-to-clean properties, reduce noise from equipment operation and crowds while meeting the safety and hygiene standards of the venue. In special environments such as factory workshops, machine rooms, and basements, rock wool composite and metal sound insulation and absorption panels can withstand harsh working conditions and absorb low-frequency machine noise or reverberation noise from humid environments.

Explore More via Video

Customization Options

SamZoon offers flexible customization solutions to meet diverse production needs. From core materials and panels to performance parameters and branding elements, each acoustic wall panels is optimized to improve production efficiency, achieve smooth operation, and create a unique brand image.

Specifications and Functions

Sandwich Panel tailored in size, Performance parameters, and Core material to meet your needs

Structural Process

Customized according to the production process and structural form of the board, to different installation methods.

Application Customization

Customizable crest height and seam construction, with optional weather-resistant fluorocarbon (PVDF) coating.

Why Choose SamZoon Acoustic Wall Panels?

Stable Quality

Quality control throughout the entire process from raw materials to finished products

Environmental Friendly

Meets E1 environmental standards, with antibacterial, moisture-proof, and weather-resistant properties

Precise acoustic effect

It has a high sound absorption and noise reduction coefficient, which can effectively control reverberation and echo.

Customization Supported

Customization is supported for size, shape, perforation rate, and core material combination

Scenario-based solutions

We provide customized acoustic solutions for different scenarios such as cleanrooms, hospitals, conference rooms, and KTVs

Reasonable price

Offering a more competitive price for the same quality, achieving “better quality at the same price

Real-World Acoustic Wall Panels Solutions

Learn how businesses across industries are using SamZoon sandwich panel solutions to overcome fire safety hazards. From excellent thermal insulation to strong fire resistance and superior sound insulation, our sandwich panels help businesses save energy, reduce consumption, and lower operating costs.

United States

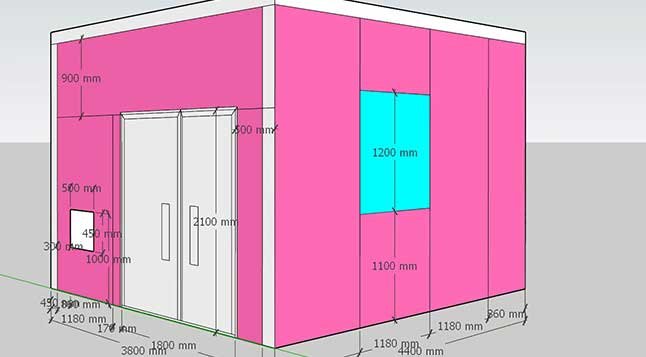

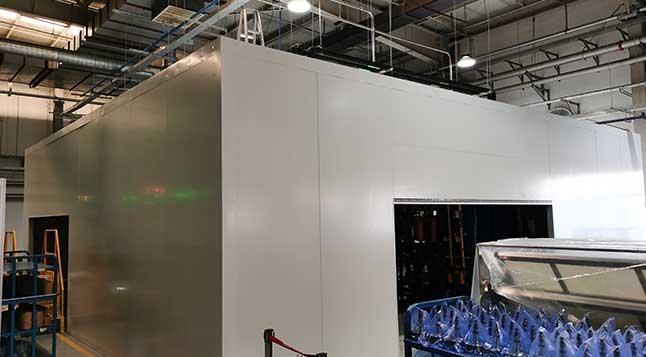

Quiet Room

Project Introduction

Located in a picturesque resort town in Queensland, the project benefits from a warm and humid climate, which places high demands on the insulation and moisture-proofing properties of building materials. EPS sandwich panels not only effectively maintain indoor temperature but also resist the intrusion of humid external air, ensuring a comfortable and dry living environment.

Our Solution

Holiday homes built using color-coated steel foam panels save significant construction time and costs. The lightweight and easy-to-install EPS sandwich panels greatly simplify the construction process and reduce manpower consumption. Furthermore, the high strength and compressive strength of this material provide reliable protection for the long-term use of the holiday homes.

UK

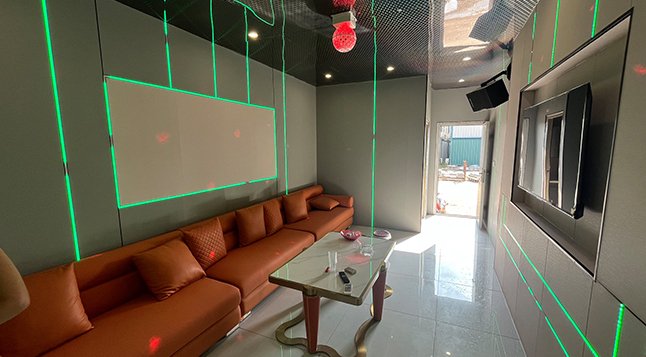

KTV

Project Introduction

Our Solution

Thailand

Cold Storage Project

Project Introduction

Our Solution

SamZoon

The First Choice for Global Customers

About Our Factory

20+ years in business as an industry leader

The factory area exceeds 20,000 square meters.

Exported to 60+ countries and regions

The company’s products have 31+ patents.

Trust and recognition from over 8,000 customers

We have 60+ employees to serve you.

It has 8 production lines, including automated equipment.

We can produce 30,000 m² of sandwich panels per day.

FAQS

1.What issues should be considered when installing acoustic wall panels?

When installing acoustic wall panels, it is necessary to control four aspects: substrate preparation, installation process, attention to detail, and post-installation maintenance, in order to ensure sound absorption effect and service life.

2.Are there any strength requirements for the wall substrate when installing acoustic wall panels?

The installation of acoustic wall panels places specific requirements on the strength of the wall substrate. The strength of the substrate directly affects the installation stability and service life of the sound-absorbing panels, and may even indirectly affect the sound absorption effect.

3.What are some common quality problems with acoustic wall panels?

Substandard Sound Absorption Performance (Core Functional Defect)
Inflated/Low Sound Absorption Coefficient
Symptoms: The product is advertised as having good sound absorption, but after installation, there is no significant improvement in indoor reverberation and echo problems. The tested sound absorption coefficient (NRC) is far lower than the stated value.
Causes: Cutting corners during production, such as insufficient perforation rate in porous sound-absorbing panels, insufficient thickness of the sound-absorbing felt inside wooden sound-absorbing panels, and insufficient density of the core fiberglass wool in fabric sound-absorbing panels; failure to design the structure according to acoustic principles, such as an unreasonable cavity depth in resonant sound-absorbing panels.
Identification Method: Request a third-party acoustic laboratory test report from the seller, focusing on the sound absorption coefficient data at different frequencies, rather than just relying on promotional materials.
Unstable Sound Absorption Performance
Symptoms: Within the same batch of boards, some have good sound absorption, while others have poor absorption, indicating poor consistency.
Causes: Lax control over production processes, such as inconsistent hole size and spacing in the boards, and uneven filling of the sound-absorbing material.
Physical Performance Defects (Affecting Service Life and Installation Effectiveness)
Excessive Deviation in Board Dimensions
Manifestations: Length, width, and thickness errors exceed ±0.5mm, resulting in inconsistent gap widths, misalignment, or even misalignment of the slots during splicing (for grooved wood acoustic panels).
Causes: Insufficient precision of cutting equipment; lack of dimensional calibration during production; excessive moisture content in the boards, leading to dimensional deformation due to drying shrinkage.
Identification Method: Sampling and measuring the length, width, and thickness of multiple boards to check for straight edges, burrs, and chipped edges.
Surface Finish Quality Issues
Wooden Acoustic Panels: Wrinkled, dripping, and noticeable color differences in the paint finish; messy wood grain splicing; scratches, dents, knots, and other defects on the board surface.
Fabric Acoustic Panels: Pilling, fading, and unraveling of the fabric; poor adhesion between the fabric and the substrate, resulting in bulging and peeling.
Metal Acoustic Panels: Peeling and rusting of the surface coating; rough edges around the perforations. Causes: Inferior surface materials, immature spraying/bonding processes, and missing finished product inspection procedures.
Insufficient Structural Strength
Manifestations: Wooden sound-absorbing panels are prone to cracking and warping; mineral wool sound-absorbing panels are loosely textured and easily crumble or break during handling or installation; aluminum honeycomb sound-absorbing panels have poor adhesion between the panel and the honeycomb core, resulting in delamination.
Causes: Excessive moisture content in wood-based panels (exceeding the standard of 8%-12%); improper fiber ratio in mineral wool panels; poor quality adhesive for honeycomb panels and inadequate curing process.

4.How to determine if the physical properties of a acoustic wall panels meet the standards?

To determine whether the physical properties of sound-absorbing panels meet the standards, it is necessary to focus on three core dimensions: dimensional accuracy, structural strength, and surface quality, and to combine tool testing, visual inspection, and simple practical methods.

5.How to test the damage resistance of acoustic wall panels?

The testing of the damage resistance of sound-absorbing panels is divided into two categories: rapid on-site testing and precise laboratory testing. The former is suitable for procurement acceptance and construction quality inspection scenarios, while the latter is suitable for product certification and batch sampling inspection scenarios.
